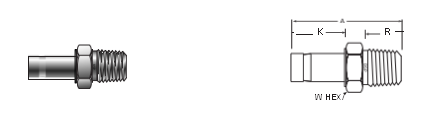

BSPT外螺紋接頭 公制
CPI? 訂貨號(hào) | A-LOK? 訂貨號(hào) |
互換型號(hào) | 毫米 | ||||||
卡套端 | BSPT 螺紋端 | A | K | R | W HEX | BORE | |||
T2HF 3-1/8K | M3MA1/8K | 3-MTA-1-2RT | 3 | 1/8 | 29,4 | 13,5 | 9,7 | 12,0 | 1,8 |
T2HF 4-1/8K | M4MA1/8K | 4-MTA-1-2RT | 4 | 1/8 | 29,4 | 14,3 | 9,7 | 12,0 | 2,0 |
T2HF 6-1/8K | M6MA1/8K | 6-MTA-1-2RT | 6 | 1/8 | 31,0 | 15,9 | 9,7 | 12,0 | 4,0 |
T2HF 6-1/4K | M6MA1/4K | 6-MTA-1-4RT | 6 | 1/4 | 35,7 | 15,9 | 14,2 | 14,0 | 4,0 |
T2HF 8-1/4K | M8MA1/4K | 8-MTA-1-4RT | 8 | 1/4 | 37,3 | 16,7 | 14,2 | 14,0 | 6,4 |
T2HF 8-3/8K | M8MA3/8K | 8-MTA-1-6RT | 8 | 3/8 | 38,3 | 16,8 | 14,2 | 18,0 | 5,0 |
T2HF 10-1/4K | M10MA1/4K | 10-MTA-1-4RT | 10 | 1/4 | 38,1 | 17,5 | 14,2 | 14,0 | 7,1 |
T2HF 10-3/8K | M10MA3/8K | 10-MTA-1-6RT | 10 | 3/8 | 38,1 | 17,5 | 14,2 | 18,0 | 7,5 |
T2HF 10-1/2K | M10MA1/2K | 10-MTA-1-8RT | 10 | 1/2 | 44,5 | 17,5 | 19,1 | 22,0 | 7,5 |
T2HF 12-1/4K | M12MA1/4K | 12-MTA-1-4RT | 12 | 1/4 | 43,7 | 23,0 | 14,2 | 14,0 | 7,1 |
T2HF 12-3/8K | M12MA3/8K | 12-MTA-1-6RT | 12 | 3/8 | 44,5 | 23,0 | 14,2 | 18,0 | 9,1 |
T2HF 12-1/2K | M12MA1/2K | 12-MTA-1-8RT | 12 | 1/2 | 49,2 | 23,0 | 19,1 | 22,0 | 9,1 |
T2HF 16-1/2K | M16MA1/2K | 16-MTA-1-8RT | 16 | 1/2 | 50,8 | 24,6 | 19,1 | 22,0 | 12,7 |
T2HF 18-3/4K | M18MA3/4K | 18-MTA-1-12RT | 18 | 3/4 | 51,6 | 24,6 | 19,1 | 27,0 | 14,0 |
T2HF 20-3/4K | M20MA3/4K | 20-MTA-1-12RT | 20 | 3/4 | 52,4 | 25,4 | 19,1 | 27,0 | 15,1 |
T2H 25-1K | M25MA1K | 25-MTA-1-16RT | 25 | 1 | 65,9 | 31,8 | 23,9 | 35,0 | 19,8 |
